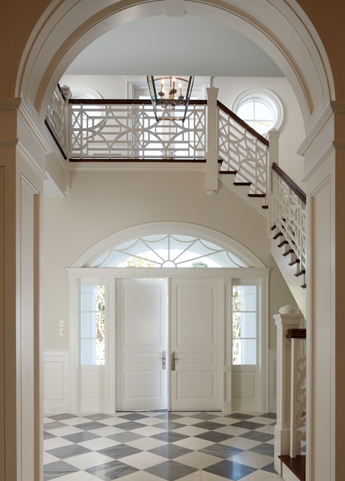

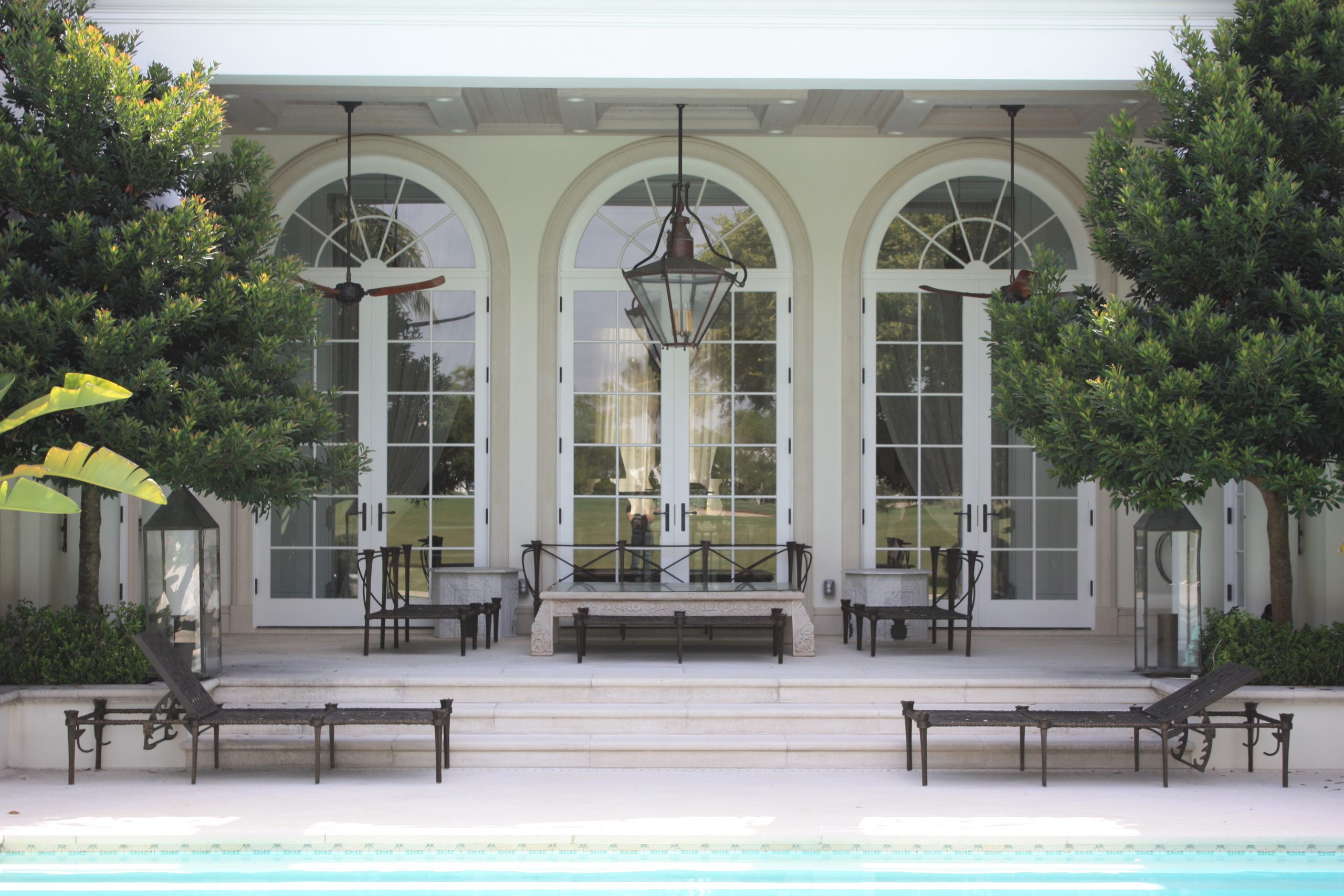

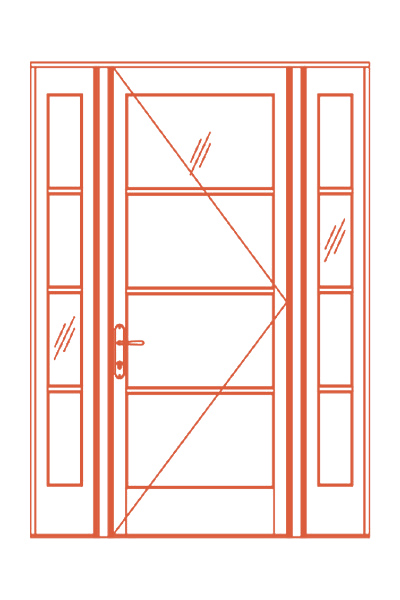

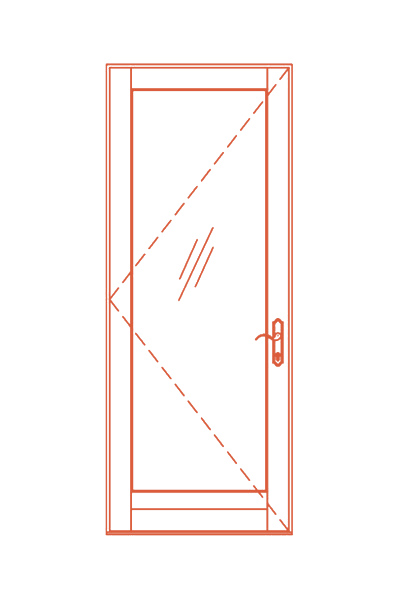

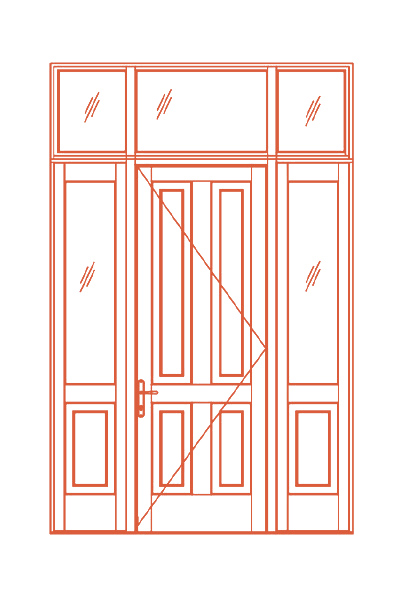

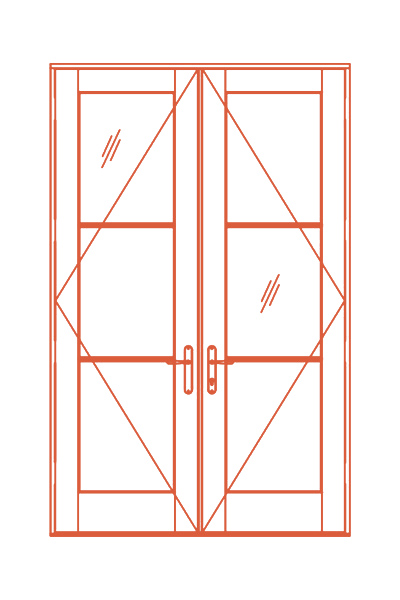

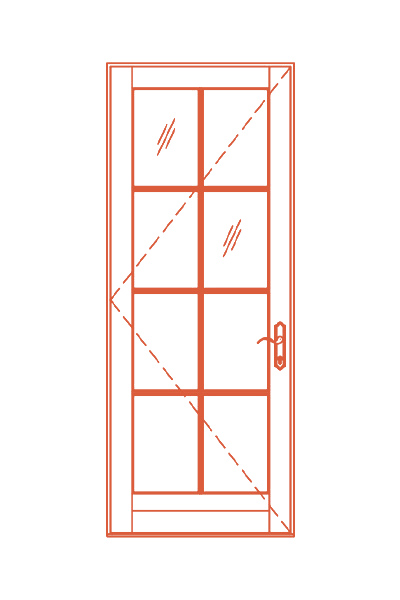

AMERICAN OUTSWING DOOR

All our swinging doors feature a multi-point locking system that functions via single handle, providing easy operation, superb air sealing, and the utmost protection. This door is part of our European Series, meaning that there is an elegant overlap between the sash and the jamb. Our advanced manufacturing technology ensures the highest precision of parts, combining old world craftsmanship with new world technology. Using the highest quality materials, expert craftsmanship, and advanced machinery, our windows are built to last. At Hartman, you have nearly endless design capabilities, so your window is truly your own.

Design

PRODUCT DETAILS

  • Custom built to your desired size, configuration, and specifications

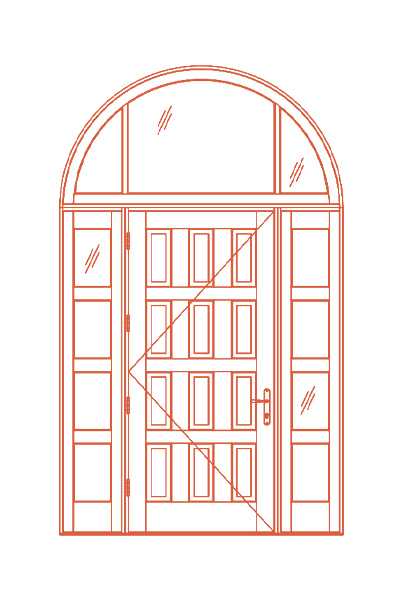

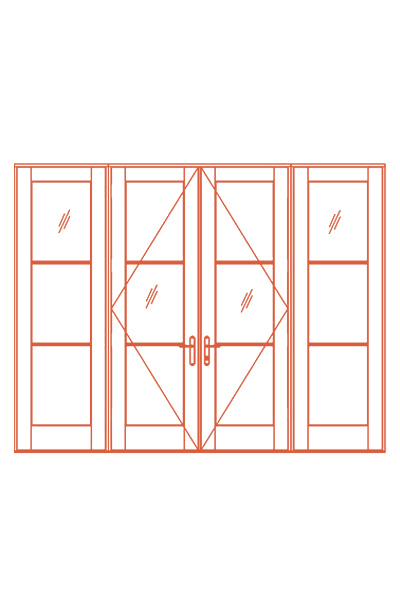

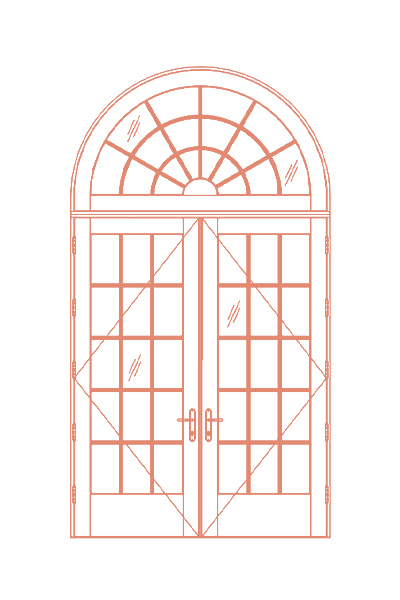

  • Full range of configurations available, such as fixed, double-wide, arched top, etc.
  • Vast array of custom colors, hardware, and trims (see below)
  • Operates smoothly via push out handle. A friction stay ensures a controlled opening where the window stays put at any open point.
  • Each product is engineered using computer technology and constructed with the finest European machinery for ultimate strength and precision.

Species & Finishes

WOOD SPECIES

  AFRICAN MAHOGANY


 HONDURAN MAHOGANY


  SAPELE MAHOGANY


  TEAK


  OAK


  CYPRESS

WOOD SPECIES


We source the highest grade wood species, many of which are Forest Stewardship Council (FSC) certified. All our wood is free of finger joints and is kiln dried before fabrication. All stock is opened and let set for two weeks prior to fabrication for the highest precision of parts.

AFRICAN MAHOGANY

HOUNDURAN MAHAGANY



SAPELE MAHOGANY

TEAK

OAK

CYPRESS

STAINS & PAINTS


All products receive three coats for maximum protection – one coat of primer or stain and two top coats of finish.

STAIN

AzkoNobels premium brand Sikkens Cetol 1 and 23

Provides highest protection while enhancing natural appearance of wood

PAINT

Sherwin Williams premium coating (Duration)

Color to match project specifications

TEAK

BUTTERNUT

MAHOGANY

OAK

DARK OAK

EBONY

MAHOGANY OAK

NATURAL OAK

EBONY DARK OAK

GLAZING


  1. All glazing is per project specifications
  2. Hartman can accommodate most configurations and glass make-ups from ¼” tempered single glazed (non-impact) to 1-3/16” laminated / insulated Hurricane impact glass.
  3. Monolithic, laminated, insulated, tinted, Low-E, spandrel, and smart glass available.







Finishes

Hardware

MULTI-POINT LOCK SYSTEM

European multi-point hardware controlled by a single lever. Corrosion resistant stainless-steel ideal for coastal applications. The sash can open from 0°-180° for ventilation. Three to seven individual locking points per door panel for extreme high security combined with environmentally friendly dual extruded E-Lon TPE closed cell foam gasketing to ensure thermal and acoustic performance.

HANDLES

  • Handle works with an 8mm spindle and 92mm lever to cylinder spacing, lever above with a European profile cylinder below.
  • Several standard lever styles and finishes included.
  • Custom options also available from multiple manufacturers.

HINGES & WEATHER STRIPPING

  • 4-1/2” x 4-1/2” solid brass or stainless-steel butt hinges available in most standard finishes.
  • Custom hinges and finials available from multiple manufacturers.
  • Environmentally friendly dual extruded E-Lon TPE closed cell foam full perimeter gasket system with mitered corners for water or oil-based paints and stains.

OPTIONAL HARDWARE

  • Stainless-steel, stop / hold open
  • Door closer
  • Panic hardware / A.D.A. compliant
  • Electromechanical locking and intelligent access control
  • Concealed alarm contact

Screens & Shutters

Concealed roll-down or custom wood swing screens allow you to open your windows and enjoy the air.





  • Concealed manual or mechanical roll down or pull across screens.
  • Concealed manual or mechanical solar or blackout shades.
  • Custom designed wood swinging screens.
  • 18 x 16 charcoal fiberglass mesh screens are standard. Stainless-steel and bronze mesh also available
  • Custom operable or fixed wood serpentine louvers with stainless-steel and self-lubricating nylon bushings for smooth operation.

Louver shutters can be used with or without screens.





  • Concealed manual or mechanical roll down or pull across screens.
  • Concealed manual or mechanical solar or blackout shades.
  • Custom designed wood swinging screens.
  • 18 x 16 charcoal fiberglass mesh screens are standard. Stainless-steel and bronze mesh also available
  • Custom operable or fixed wood serpentine louvers with stainless-steel and self-lubricating nylon bushings for smooth operation.

SCREENS

PULL ACROSS SCREEN



SWING WOOD SCREEN

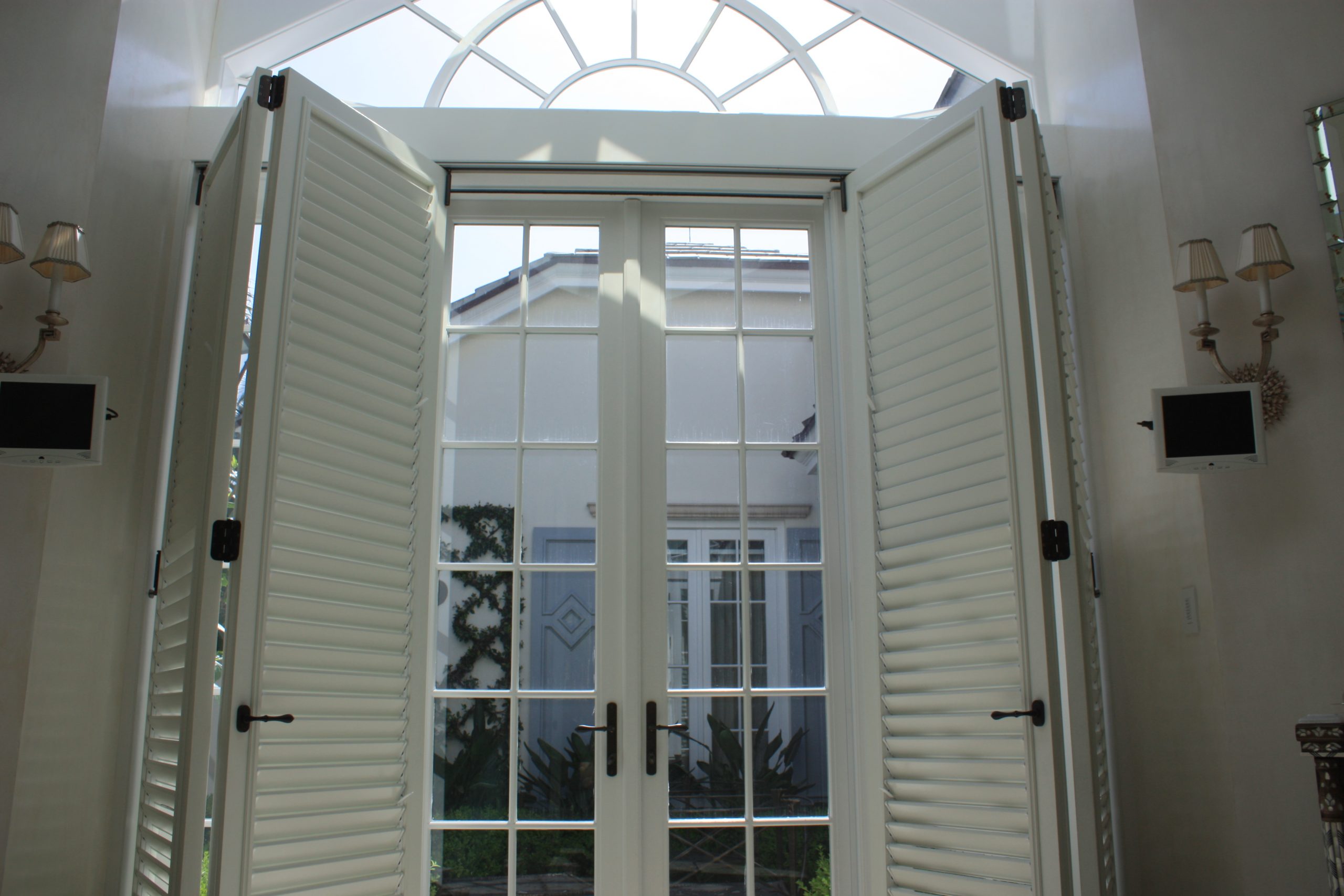

SHUTTERS

OPERABLE LOUVER



SERPENTINE LOUVER

Grilles

Grilles offer individuality to windows & doors, enhancing your architectural design and reflecting personal taste. Our windows & doors typically use simulated divided lite (SDL), an energy efficient way to recreate the authentic look of true divided lite. SDL bars are adhered to the inside and outside of the glass and a spacer bar is placed between the glass, mimicking true divided lite. For homes not on the coast, true divided lite is available upon request.

GRILLE CONFIGURATIONS

Nearly any configuration you can dream up, we can do.

Here are a few sample designs.

TRADITIONAL

TOP ROW

EQAUL DIVIDE

FULL LITE

PRAIRIE

CHECK RAIL

GRILLE PROFILES

Grilles are available in a variety of widths and styles. Custom profiles are also available.

MINIMAL

MODERN

ELONGATED OGEE

TRADITIONAL OGEE

RADIUS

SIMULATED PUTTY

Impact Approval

All of our products are tested to Miami-Dade product approval code, the highest standards worldwide. This means that our windows and doors: 1) are built to withstand the harshest weather conditions; 2) have enhanced resistance to forced entry; 3) will realize energy savings from reduced air infiltration; 4) help to eliminate ultraviolet rays for protection of fine art and fabrics; and 5) can provide a quieter environment due to enhanced STC ratings.

Miami-Dade County Product Control Approved

  • Large Missile Impact – TAS 201 and ASTM E1886/1996
  • Static Load – TAS 202 and ASTM E330, +/- 80psf design pressure
  • Cyclic Load – ASTM E1886/1996 and TAS 203, +/- 80psf design pressure
  • Air – ASTM E283 and TAS 202; 1.57 & 6.24psf; Measured: 0.01cfm, Allowed: 0.30 cfm
  • Water – ASTM E330/TAS 202; Test Pressure 12.5psf; Measured & Allowed: No Entry

NOA No. 09-0518.01
